Xbox 360 receiver install for Windows 7

Archived for the Xbox 360 receiver for those who are running older OS’s such as myself.

Note: If you came to this blog first and have a windows 10 operating system please click here to read the original blog article which will give you fresh screen shots and video tutorials on how to install the Chinese receiver onto your Windows 10 device. For those who are running Windows 7 and earlier operating systems continue reading!

Video mirrors:

In case you have no-script enabled or for some reason cannot see the title video on this website. I have provided direct links for these videos.

  • WebM – Link – This is the newest video standard, works great on Opera, Firefox, Chrome, and newer android phones, not good for Safari, IE, Apple.
  • MP4 – Link – The most compatible codec but also rather large in file size. Make take a while to download.
  • OGV – Link – the fallback codec for older PC’s and Linux USB stick OS’s. 1st generation web video streaming based on Ogg-Vorbis encoding.

PDF file available:

When I still had an analytic installed I noticed a lot of people where saving my tutorials onto the hard-drive. I understand that you may not trust this site being around in the next few months. Or perhaps you are going into a part of the world where internet isn’t fantastic. Or perhaps you are a seller of these receivers and are looking for a document that you can print up and attach to your product. You can now download a PDF of this article for you to have , print, and read on your hard drive.

Introduction:

Now for those who don’t know what this little guy does; It allows you to hook up ANY wireless Xbox 360 Controller which operates on a wireless 2.4ghz range to your PC (Up to four devices just like the original Xbox 360) which is useful for playing a lot of Steam games which are coming out which are all about Couch-Action multiplayer action. This wireless receiver is actually a really nice device to have considering Xbox One is released making the hardware of the 360 obsolete. And when hardware becomes obsolete it gets very cheap! I personally paid for 4 Xbox 360 controllers on eBay for around $55 with shipping included. Which isn’t bad at all! Read on if you would like to know more about this little $8 unit!

Original wireless receiver versus the Chinese version.

This is a brief summary and differences between the two Xbox 360 receivers that you will find out on the internet.

This is the official Microsoft Xbox 360 Wireless Receiver. Note the Microsoft Logo on the casing and the tab on Cable.

I should note it is next to impossible to find an OEM Microsoft 360 Wireless Receiver unless you are willing to fork out $50-60 for a controller and receiver pack. Used game stores such as GameStop will not keep these around and often will not even have a receiver. GameStop treats odd-ball hardware devices by only offering a few pennies to buy it off of someone. When you do official receivers show up on eBay. they are typically going anywhere from $15-20 dollars because they are no longer in production thanks to the Xbox One.

This can also be verified by checking the hardware ID in device manager. USB hardware ID for the official receiver is: USB\VID_045E&PID_0719

This is the Chinese Xbox 360 Wireless Receiver with has no indication it came from Microsoft.

Chinese receivers will come in cheaper packing (if any at all) and will not say the word “Microsoft” anywhere on the unit or package. This allows them to sell this units in this country without them getting pulled for various intellectual property related laws (And don’t think Microsoft won’t go after people for this! They still throw cease and desist letters to people giving out MS-DOS disks for gods sake!) You’ll also get a CD and that’s about it! No real instructions in the packaging itself.

This can be verified by checking the hardware ID in device manager. USB hardware ID for the official receiver is: USB\VID_045E&Pid_0291
for windows 7 or USB\VID_05C6&PID_9244 for windows 10.

Where to purchase the China Wireless Xbox Receiver.
  • Ebay – Ignore the Malaysian listings as it generally takes three times longer then China and the sellers use dirty tactics to get the lowest price. Generally 8 to 10 dollars USD with shipping from China.
  • NewEgg – More for North American buyers who don’t want to mess with Ebay. Prices are 9 to 13 USD plus possible shipping.
  • DX – A little more expensive then Ebay in the 12 to 14 USD range. DX however may be more suitable for international buyers.

Note: Zero commission is made from these links. These are posted as a service to those reading this blog.

Wireless receiver woes:

Lets go through some of the issues encountered with the Chinese Wireless receiver.

Toss this CD, it’s pointless!

An issue with the Chinese receiver is that although it gives you a driver-CD. That CD is absolutely useless unless you have windows XP 32-bit you minus well just throw the thing away! So if you have a Windows 7 or Windows 8 box. The Screen Below is the typical screen you will get! I have uploaded an archive of my disc which can be downloaded. Click here to access this file. This was only uploaded for archival purposes and will not be used in any way during this tutorial.

10/5/2017 note: File has been re-compressed to .7z A.K.A 7-zip for better compression. WinRAR can extract 7z files as well.

No driver update, can’t point to the CD because the OS supported is Windows XP. Crap!

This is because the China Xbox 360 Wireless Receiver is emitting a different hardware ID then the Microsoft one. USB\VID_045E&PID_0291 for windows 7 to be exact. Because of this Windows has no clue on what to do about this and Unlike a wired 360 controller or dance pad where it will simply pull its drivers off of Windows Update. It cannot do anything with our Chinese receiver.

So how do we work around this problem?

Simple, we force the Microsoft driver down its throat!!!

Acquire the software.

You are first going to want to download the driver from Microsoft’s site dealing with Xbox Controllers – http://www.microsoft.com/hardware/en-us/d/xbox-360-wireless-controller-for-windows – Choose your operating system, download, and install this driver. I highly recommend installing this driver as it will load all of the default Microsoft interfaces for this tutorial and also it will give you a battery utility so when you press your center button for Xbox control it will tell you how much battery is left in your controller.

Direct download:

This site prides itself on being the one-stop blog for everything you could need in a guide. However, as our usual disclaimer you should always run a virus checker over any executable you get from a third party site including my own. Do not trust anything unless it comes from the source manufacturer. We will keep things clean as long as the site owner is alive but you may never know! Also note that to preserve file space and for simplicity sake all versions have been compressed into a single solid 7-Zip file. You may use WinRAR or 7-Zip to extract the files in this archive:

This archive which is approximately 8Mb in size contains both the 32-bit and 64-bit versions of the Xbox 360 receiver driver. Click here to download the archive or click on the icon to the right of this paragraph to begin.

I will always try to provide links as I am never sure when a company discontinues support.

Extract files:

The first thing you will want to do is get a copy of WinRAR or 7-Zip . Basically any package that is capable of extracting 7-zip files. For for this tutorial we will extract it to the C:\chinaxbox\ folder. You may extract it anywhere you like just note where you extracted it to.

Notes about the archive:

In the following example above we will be extracting everything in the C:\chinaxbox\ folder. This archive contains the following files:

  • Xbox360_32Eng – This is the 32 bit version of the Xbox Driver for those working with Windows 7 32-bit, Windows 8 32-bit, and finally windows 10 32-bit.
  • Xbox360_64Eng – This is the 64 bit version of the Xbox Driver for those working with Windows 7 64-bit, Windows 8 64-bit, and finally windows 10 64-bit.
  • Xbox360_Mod_XP – This version is made specifically for windows XP 32/64 bit and Windows 7 32/64. Windows XP tutorial is available here.

The Xbox360_Mod_XP folder modifies the following line entry on line 65-66 in C:\chinaxbox\Xbox360_Mod_XP\xbox360\win7\xusb21.inf:

;China receiver mod by S-Config 10/2/2015
%XUSB21.DeviceName%=CC_Install, USB\Vid_045E&Pid_0291

This not only works on windows XP to get the driver installed as you cannot force a different driver in XP. But this entry eliminates the annoyance of having to reload the driver every time you unplug your wireless receiver and plug it into a new port. The downside of this modified driver is it breaks the signature and thus doesn’t work on Windows 8 64-bit and Windows 10 64-bit unless you disable signature enforcement.

Wireless Xbox 360 Receiver driver installation For Windows 7 and windows XP.

Now that we have received a legit driver instead of those crappy drivers on the CD we can begin!

If you downloaded your driver from Microsoft direct then you may simply double-click on the EXE file that you downloaded from them. If you used our 7-zip archive. Navigate to either the C:\chinaxbox\Xbox360_32Eng or C:\chinaxbox\Xbox360_64Eng folder depending on what OS you have installed and double-click the setup.exe file inside.

The very first thing we will be doing is (with administrative rights of course) launch that installation file you have downloaded to begin installing the drivers into windows 10. Check the box to “I accept this agreement” and click the Next button to continue.

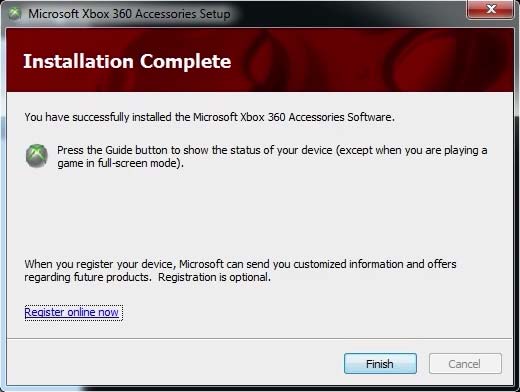

It should install all of the driver files and complete.

Installed fails due to missing .NET Framework 3.5.

As a note this program installation can fail is .NET Framework 3.5 is not installed which only happens if you installed a Windows 7 installation without ever going to windows updates and downloading this file.

If for some reason .NET Framework 3.5 is not installed on your windows 7 box. Download for you you may click here to go to Microsoft’s website for .NET Framework 3.5.

If you are working offsite for any reason you may wish to download the Offsite version of .NET Frame 3.5 by clicking here.

You may now plugin your Xbox Receiver.

To begin you are going to want to go to your device manager. On windows 7 you an click your Start Button and then right-click your “Computer” and click on Manage to open the Computer Management screen. Finally, click on “Device Manager”.

From here provided that you have already hooked up your Xbox 360 USB Receiver. We see that we have other devices that the system cannot identify. Right-click the Unknown Device and then click on Properties of this particular device. As a note if you have an OEM Microsoft receiver rather then a Chinese Xbox receiver then the software previously installed will instantly detect and install the driver for you completing your installation.

Click on the Driver tab and then click on Update Driver to continue.

Since this driver cannot be found by the CD or Windows Update. Searching automatically is a waste of time. Click on Browse my computer for driver software.

Since we are going to inject the driver manually select “Let me pick from a list of device drivers on my computer” and then click Next.

Note: If you did not install the software as stated at the beginning of this tutorial this category may not exist. In my case since I had some Xbox wired controllers Windows Update did the job for me. Select “Microsoft Common Controllers for Windows Class” and then click Next.

This is the section which deals with only Xbox 360 Controllers. All of these drivers are digitally signed indicating that they come right from Microsoft which is good. Select “Xbox 360 Wireless Receiver for Windows” and click the Next button to continue.

Note: I have received feedback from users that sometimes the Microsoft installation does not work or does not even create the Microsoft Common Controller for Windows category. If you want to install the driver manually without having to run the executable the comes from Microsoft then check out this addendum blog about it.

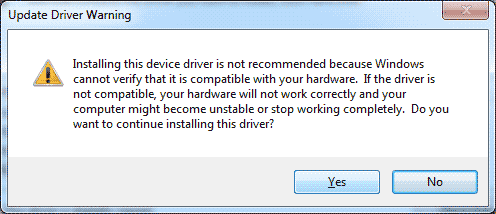

This is the part where windows does not believe that you know what you are doing. Silly windows. Click Yes to continue and it will begin installing the driver.

It will come up stating that the driver has been successful in installation. You may now Close this window.

To verify the driver is installed. Go back into your Device Manager section of Computer Management and you should see a category dealing with Xbox 360 Controllers. A Microsoft Common Controller for Windows Class and inside of this section Xbox 360 Wireless Receiver for Windows. Driver installation Complete

Testing the Wireless Xbox 360 Receiver from china.

The steps here will seem really simple for people which have owned an Xbox 360 however when looking at a lot of forums this is also the most overlooked step. Resulting in people thinking that they got a bad receiver when in all reality it is perfectly fine!

  1. Turn on your Xbox 360 Wireless Controller. It should have all four corners of the controller flashing indicating that it’s on but it cannot find a device to connect to.
  2. Press the button on the wireless receiver and it will begin flashing.
  3. While the wireless receiver is flashing, press the “Sync” button on the front of your Xbox 360 Controller as shown in the picture above. You know it will begin to Pair the device if you see the Green LEDs on the start button of your controller move in a Clock-Wise Fashion
  4. If you have a solid LED light in the upper left-hand corner indicating player 1. Congratulations! Your Xbox 360 controller is now paired up to your wireless receiver. If the LED’s spin in a clockwise circle but then returns to all lights flashing that means that it cannot find your Wireless receiver to pair up to. (Special notes: If you are hooking this up to an Android box. the controller will still flash but at a slower speed. This is because the Android OS has no official drivers for the Xbox 360 Wireless controllers as for the date of this publish your compatibility will vary from game to game under Android)

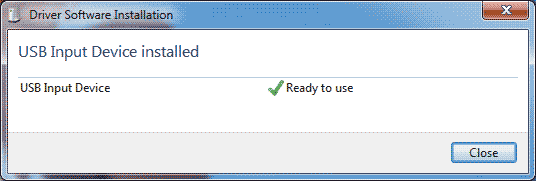

Windows will begin installing drivers the moment the controller is properly paired up. There’s no need to install additional drivers as the Xbox 360 OEM joystick windows CAN find within windows updates and also via the software we just installed.

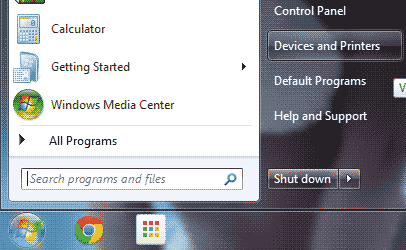

If you don’t want to go into control panel and navigate all of the different windows you can simply type the command control joy.cpl”

However, for the sake of this blog. Lets see if windows can actually see and test our new joystick that we installed. Click the start menu and click “Devices and Printers” .

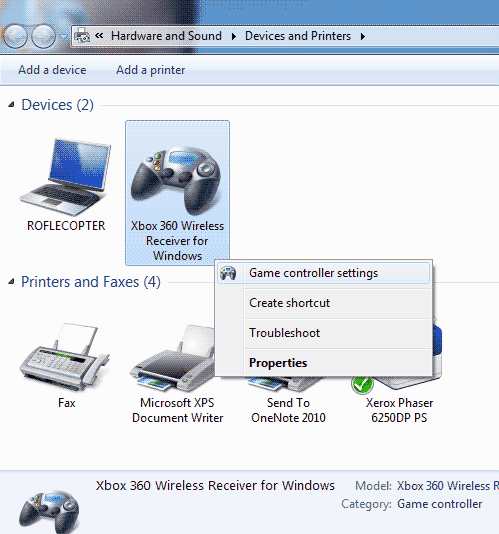

Right-Click on the Xbox 360 Wireless Receiver for Windows and click on “Game Controller settings”.

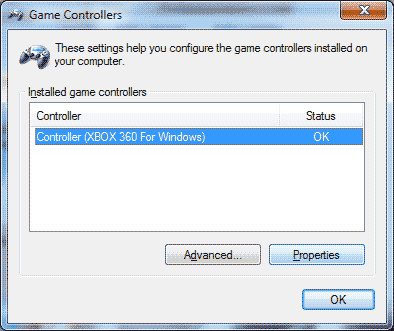

As you see, inside of the wireless receiver is where all of the wireless Xbox 360 Controllers will reside. Click on whatever controller you would like to see and click the “Properties” button.

From here you may now start pressing buttons and moving your joystick around. You also get to see if perhaps you had any bad buttons, poor analog hats which are badly calibrated or are in need of replacement hats for your controller. Also you get to visually see how terrible the D-Pad is on the X-Box controller.:)

Results of the Chinese wireless Xbox 360 receiver.

Besides the driver headaches explained above. It behaves just like the Microsoft OEM version. I got it to work all the way across my house which is identical to my Xbox 360 console wireless length. So no real complaints about connectivity or lag issues. For $8 it’s not bad and I suppose the great thing with having the wireless receiver is they give you a few feet of cable so you can place the wireless receiver anywhere giving you better receiption then the Xbox 360 could ever give you.

Could you go cheaper then $8? Well, given how many RROD Xbox 360’s out there there’s articles explaining how you can diodes and simply make your own wireless receiver out of the board existing in the (Broken) Xbox 360 console. Recycling is cool.

Getting the most out of your controller:

XPadder – beyond getting your Xbox 360 Controller hooked up to your Xbox 360 receiver and ready to go. I highly recommend the software Xpadder (Link right here) which gives you the ability to activate the rumble-feedback on it as well as mapping joystick keys to keyboard in the event you stumble across a game that has no joystick support. Also you can engage mouse support on one of the analog sticks so if you decide to do a multimedia PC on the cheap you can re-use your Xbox 360 controller on it.

If you use steam and you don’t care about the rumble pack then Xpadder is not necessary.

x360ce – x360ce is designed for controllers that are NOT Xbox controllers to magically look like Xbox controllers so you may be thinking why am I even recommending this software? Well, some users wanted to be able to remap the buttons on their controller which x360ce can supposedly do. It’s also great for testing the rumble function of your xbox wireless controller.

Related Blog Articles:

China receivers do not work with the Xbox One Controller. More details here.

Need help installing this receiver on windows XP? Click here.If you want to return to the original blog about the Xbox 360 receiver click here to be taken back for windows 10 and other OS’s If you want to know more about Android OS/Ouya connectivity with these Xbox Receiver adapters then click here or the picture above it has been moved to its own blog entry.

Are you trying to use Linux like a Raspberry Pi to get your game on? Click here.

Want to know some games we liked playing on this receiver? Click here for a brief list of games that work with controllers on PC.

Final thoughts.

Besides the driver headaches explained above. It behaves just like the Microsoft OEM version. I got it to work all the way across my house which is identical to my Xbox 360 console wireless length. So no real complaints about connectivity or lag issues. For $8 it’s not bad and I suppose the great thing with having the wireless receiver is they give you a few feet of cable so you can place the wireless receiver anywhere giving you better reception then the Xbox 360 could ever give you.

I hope you find this article useful and hopefully it will keep a few Xbox 360 controllers in circulation. If you have any questions leave it in the comments below. Please reference your OS and hardware ID as that is usually the first thing that will be asked.

Server protect you.

END OF LINE+++
